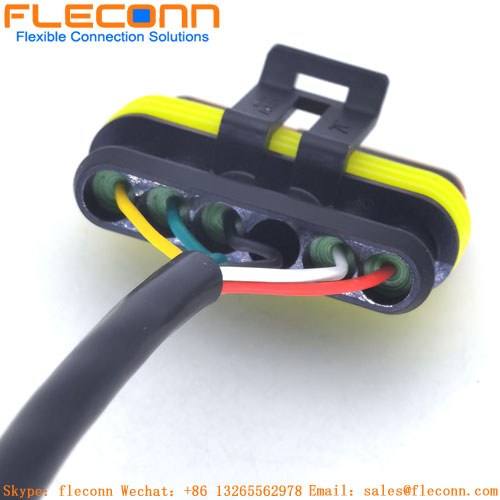

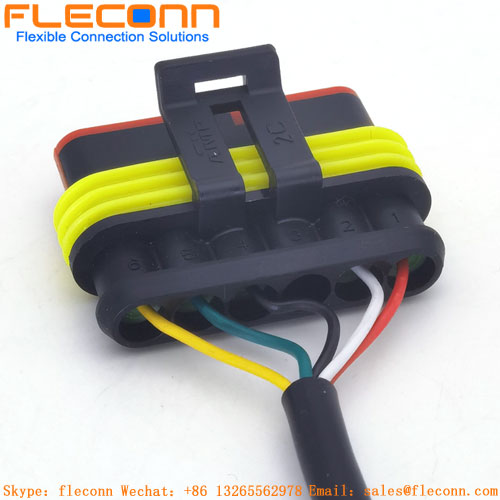

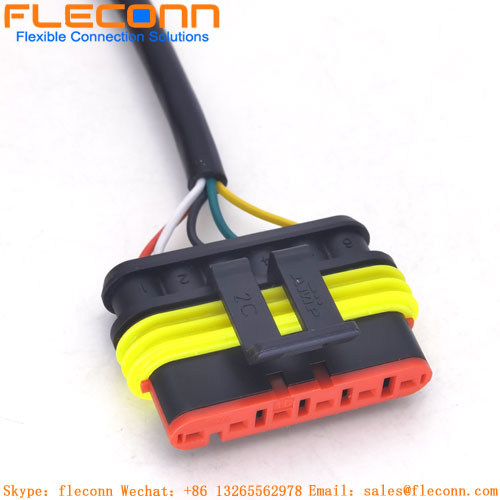

282403-1 TE Amp Super Seal 1.5 Series Waterproof Female Cable 6Pin Auto Connector

282403-1 TE Amp Super Seal 1.5 Series Waterproof Female Cable 6Pin Auto Connector

282403-1 TE Amp Super Seal 1.5 Series Waterproof Female Cable 6Pin Auto Connector

282403-1 TE Amp Super Seal 1.5 Series Waterproof Female Cable 6Pin Auto Connector

282403-1 TE Amp Super Seal 1.5 Series Waterproof Female Cable 6Pin Auto Connector

282403-1 TE Amp Super Seal 1.5 Series Waterproof Female Cable 6Pin Auto Connector

Description Review

Description

282403-1 TE Amp Super Seal 1.5 Series Waterproof Female Cable 6Pin Auto Connector Description

FLECONN can customize various TE/AMP connector harnesses for customers, aiming to reliably transmit data, power and signals in the worst environment and under the most extreme use conditions. Different types of connector harnesses can be produced according to customer needs, which can reduce the size and power consumption of applications and improve performance.

Detail description for 282403-1 TE Amp Super Seal 1.5 Series Waterproof Female Cable 6Pin Auto Connector

Prouduct Name	TE AMP 1.5mm pitch/Disconnectable Crimp style connectors
Equivalent to Molex Part No.	282403-1,282090-1
Applications	Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters	1. Connector housing:282104-3,AMP 1.5mm Crimp Housing, Friction Ramp with Polarizing Ribs, 6 Circuits, Natural
	2. Crimp terminal: 282088-1，AMP 1.5mm Crimp Terminal, 22-30 AWG, Hot Tin (Sn) Dip Plating
	3. Connector type: rectangular
	4. Connector Feature: latch lock
	5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
	6. Cable jacket: black PVC jacket
	7. Shielded: un-shielded / braided shielded
	8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
	9. Cable style: UL1571 Round cable/ UL1007 Parallel cable
	10. Wiring diagrm: defined by customers
Environment temperature:	Ambient temperature for operation: -25…125℃
Waterproof Rating:	IP67
Certificate:	CE, RoHS, UL(connector, cable)
Package:	**pcs/bind or 1pcs/PE bag

282403-1 TE Amp Super Seal 1.5 Series Waterproof Female Cable 6Pin Auto Connector
