7/8 4 Pin Male Connector
7/8 4 Pin Male Connector 7/8 4 Pin Male Connector 7/8 4 Pin Male Connector 7/8 4 Pin Male Connector 7/8 4 Pin Male Connector

7/8 4 Pin Male Connector

Item No.: 7/8-M-FW-ST-4P
Product series: 7/8 Connector
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Straight
Request Quote
Description Review
Description

7/8 4 Pin Male Connector Product Description



FLECONN, as a professional connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female connector . A 7/8 connector typically refers to a specific type of RF (radio frequency) connector commonly used in telecommunications, broadcasting, and other industries where high-frequency signals need to be transmitted reliably. These connectors are often used in applications such as: Telecommunications、Broadcasting、Wireless Networks、Instrumentation、Industrial Applications、Aerospace and Defense.


7/8 4 Pin Male Assembled Connector product parameters



Product series: 7/8 Connector Connector Gender: Male
Connector locking system: screw Connector core number: 4P
Termination: screw clamp Cable outlet: 6.0-8.0 mm
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67 Applicable temperature: -25°- +80°
Adapter wire gauge: max. 1.50 mm² / AWG 16 Connection method: threaded connection
Rated current: 9.0A Connector conductor: copper gold plated
Rated voltage: 300V Insulation resistance: ≥100mΩ


7/8 4 Pin Male Soldered Wire Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

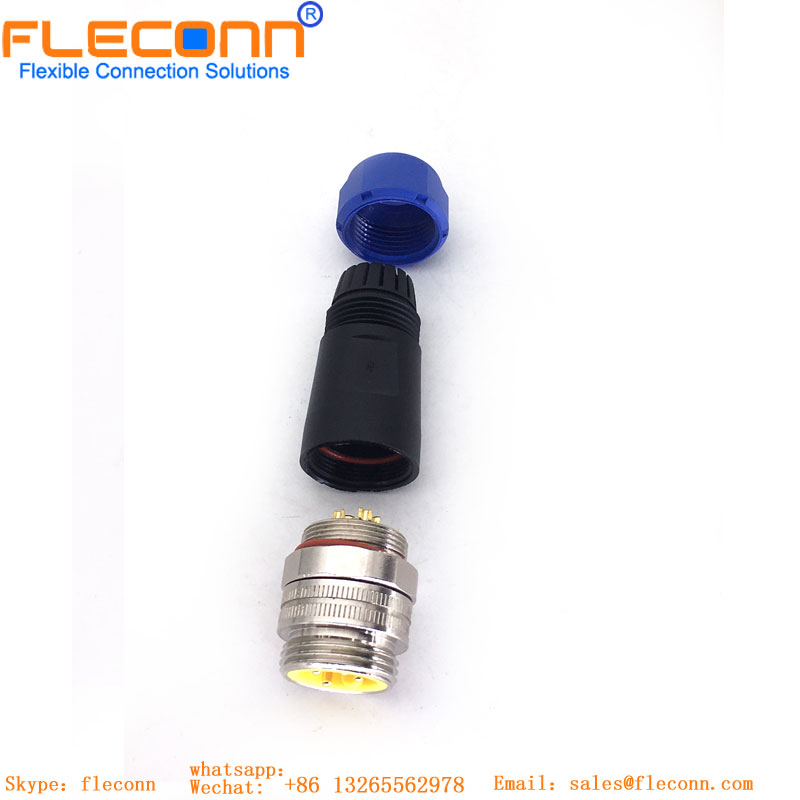

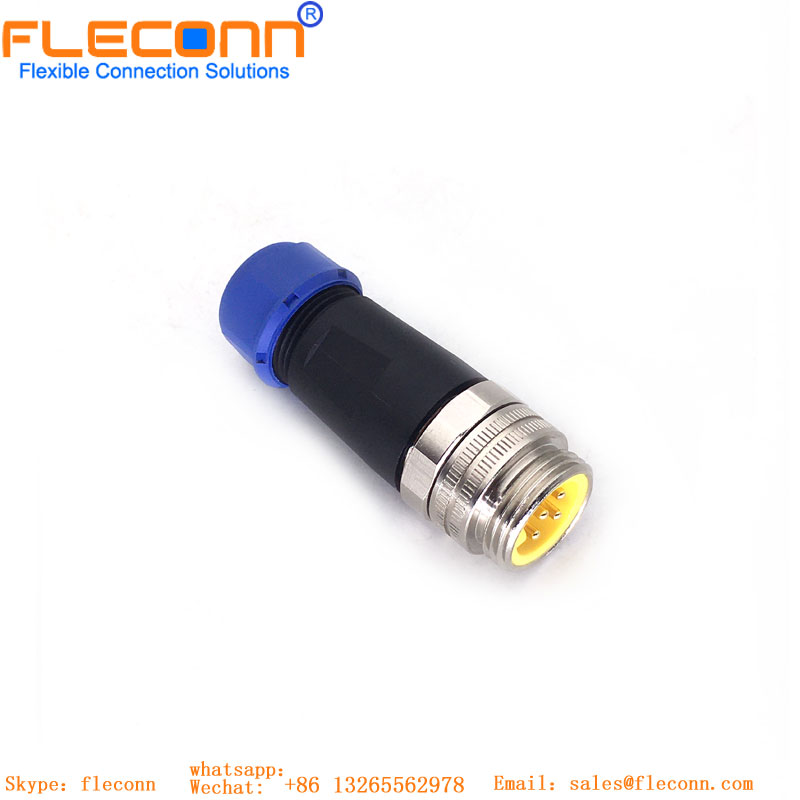

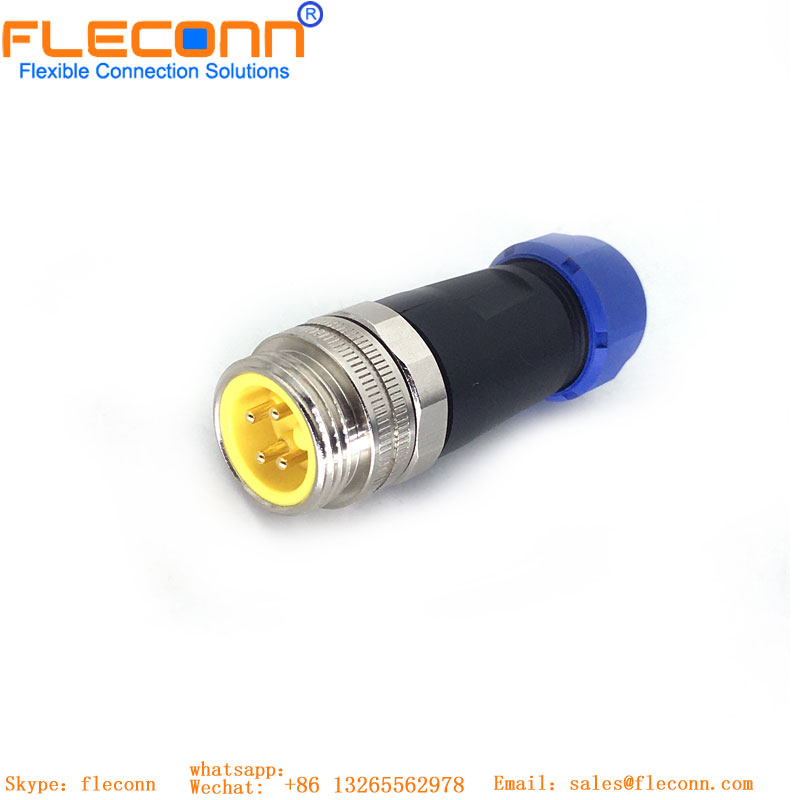

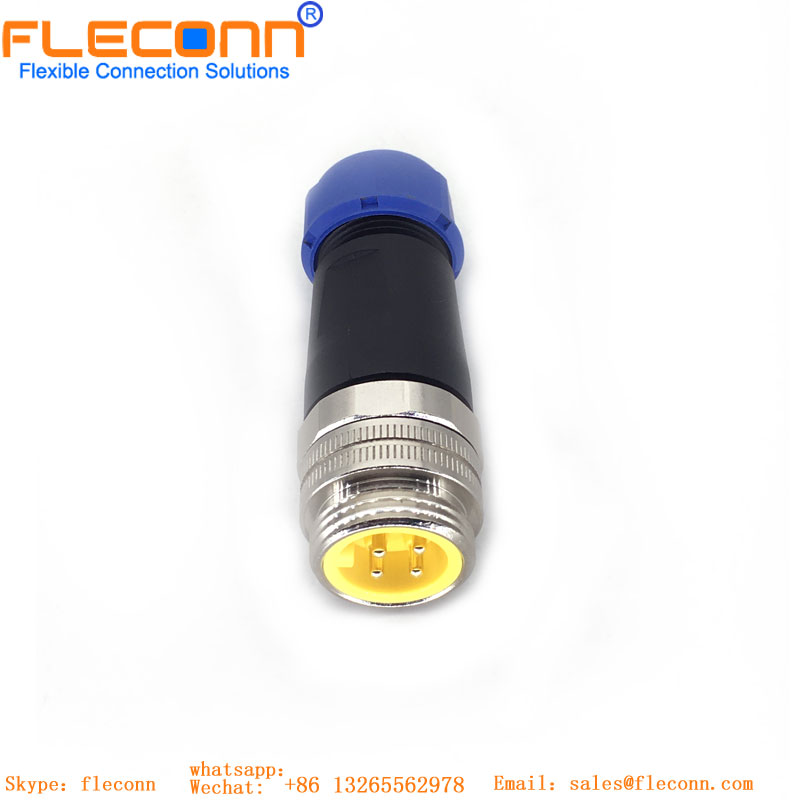

7/8 4 Pin Male Connector Picture

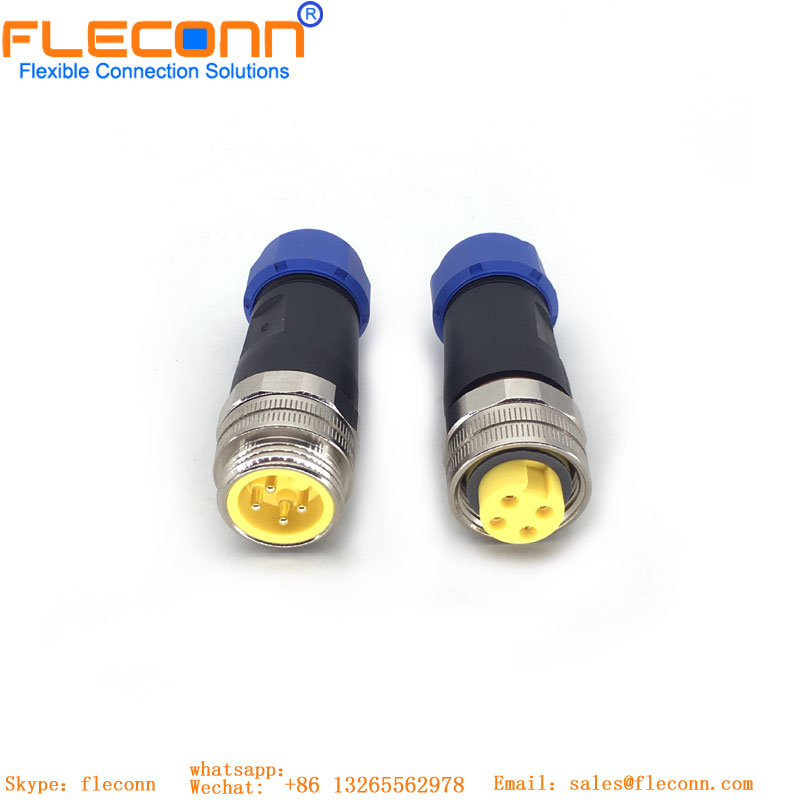

7/8 4 Pin Female Connector

7/8 4 Pin Male Connector




7/8 4 Pin Male Soldered Wire Connector



7/8 4 Pin Male Straight Solder Wire Connector



7/8 Male cable connector
