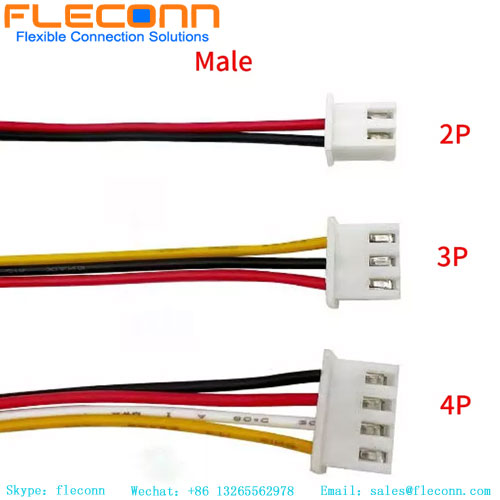

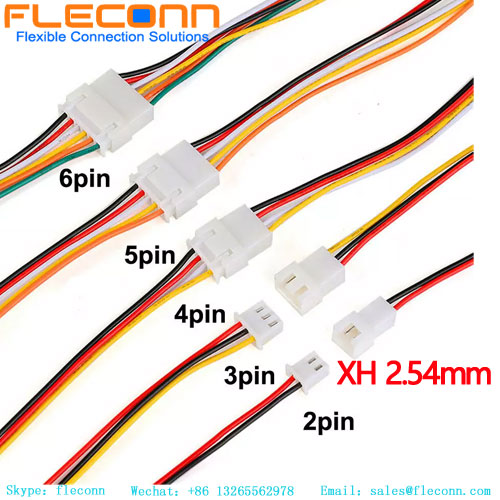

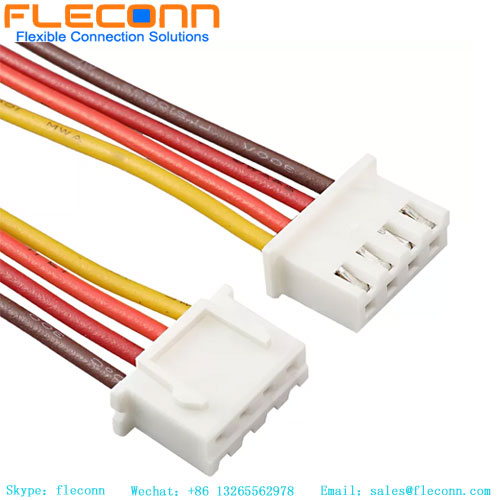

Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness
Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness

Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness

Item No.: JST-XH-2.5MM-4P
Product Name: JST XH-2.5MM
Type：Discrete Wire Assembly
Gender：Female
Pitch Mating Interface:2.54mm
Request Quote
Description Review
Description

Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness



FLECONN can custom JST XH series XHP-4 2.5mm pitch 2 3 4 5 6 7 8 pin way connector wire harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness parameters



Product Name: JST XH 2.5mm Gender：Female
Type：Connector Cable Rating voltage: 250V AC DC
Cable Length and Color:Customized Wire/Cable Type：UL

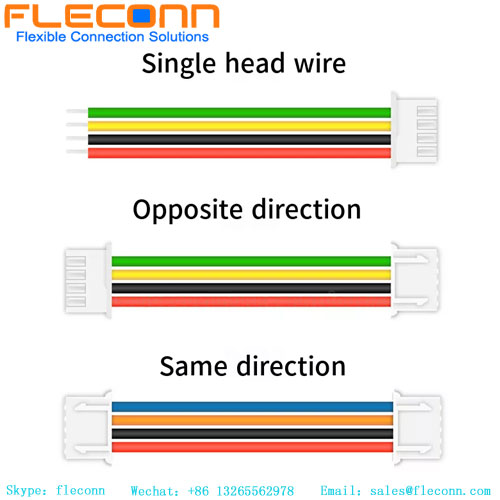

Assembly Configuration：Dual Ended Connectors Material Resin：Nylon

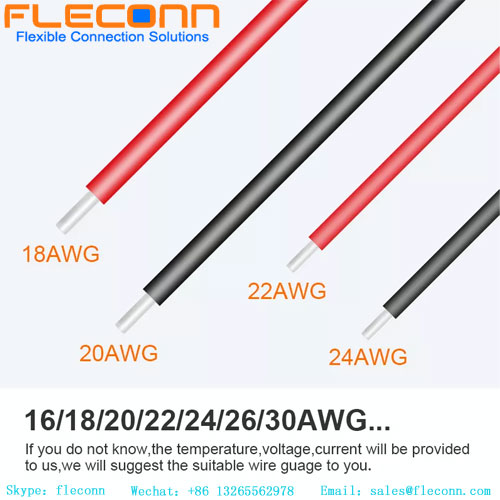

Adapter wire gauge: 24AWG - 18AWG / 26AWG - 22AWG Certificate: RoHS CE
Operating temperature, fixed installation: -25° to +80°C Rating Current: 3.0A (22AWG)
Insulation OD: 1.3mm - 1.9mm / 0.9mm - 1.9mm / 0.9mm - 1.3mm Material Metal：Brass
 Service: Wiring Harness OEM  Insulation resistance: ≥100mΩ


Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


Jst Xh Series Xhp-4 2.5mm Pitch 2 3 4 5 6 7 8 Pin Connector Wire Harness
