M8 5 Pin Female Cable
M8 5 Pin Female Cable M8 5 Pin Female Cable M8 5 Pin Female Cable M8 5 Pin Female Cable M8 5 Pin Female Cable M8 5 Pin Female Cable

M8 5 Pin Female Cable

Item No.: M8-BF-RA-05P-1M-TPU
FLECONN can produce high quality B-coded m8 5 pin female cable for automation actuator.
Product series: M8 Cable Assembly
Wire gauge: 22-26AWG
Connector Gender: Female
Waterproof Rating: IP67
Contact number: 5Pin
Plug Guide: Right Angle
Request Quote
Description Review
Description

M8 5 Pin Female Cable Product Description



M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.

M8 B-coded 5 Pin Female Connector Cable product parameters



Product series: M8 Connector Cable Connector Gender: Female
Industry standard: IEC 61076-2-104 Connector core number: 5P
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-28AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M8 B-coded Connector Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

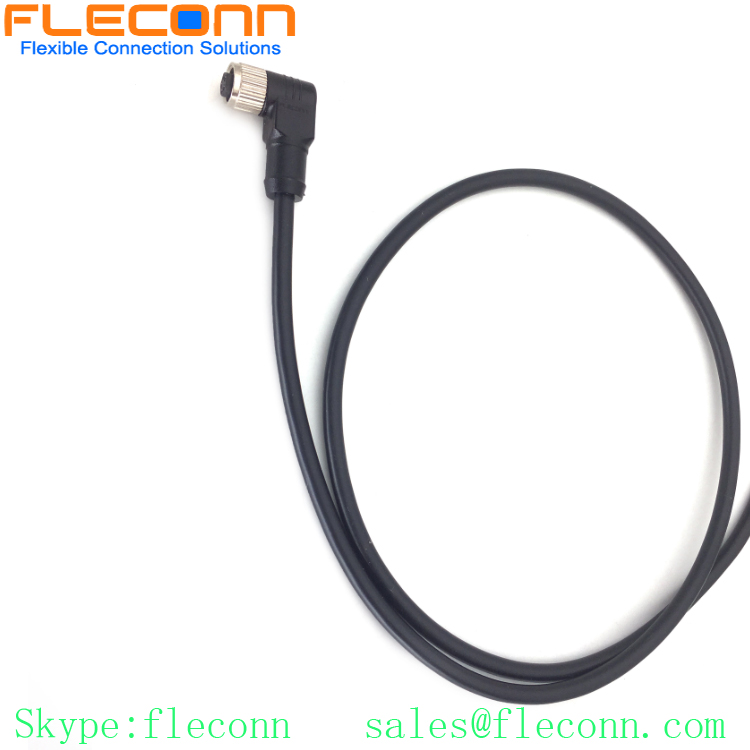

M8 5 Pin Female Cable

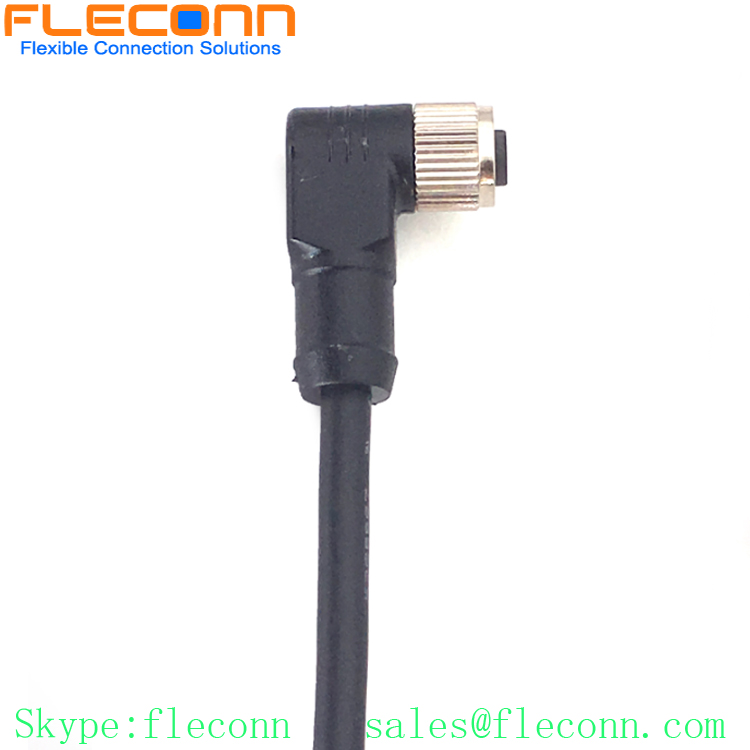

M8 B-coded 5 Pin Female Connector Cable, Right Angle

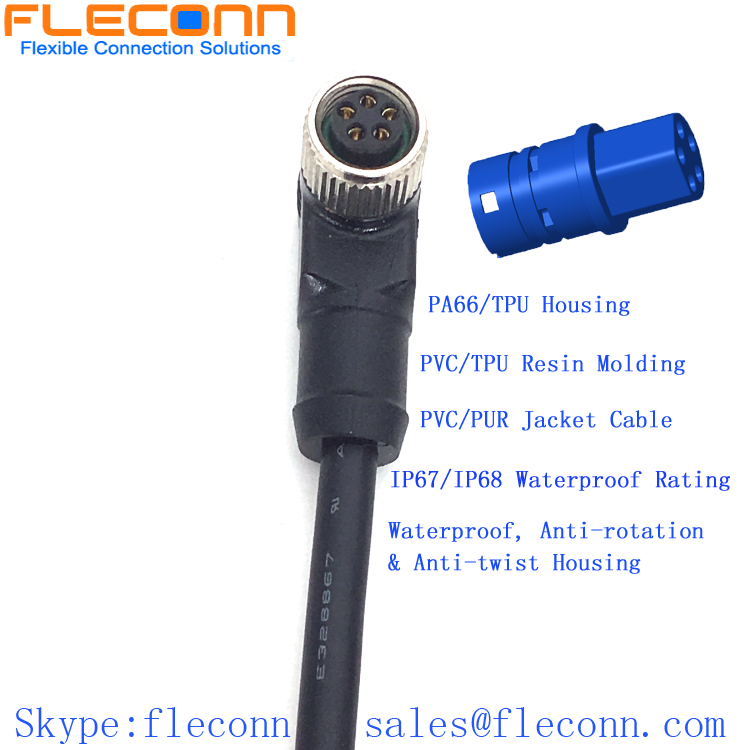

M8 5 Pin Female Right Angle Connector Cable, B-code, IP67 Waterproof Rating

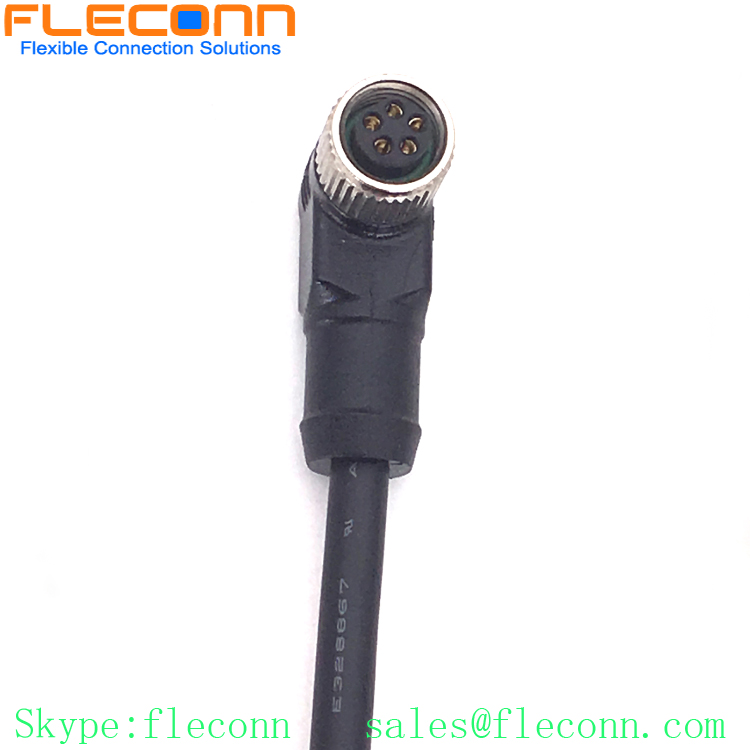

M8 90 Degree Angle Cable, 5P 5 Pin Female Connector, Unshielded PVC Jacket Cable

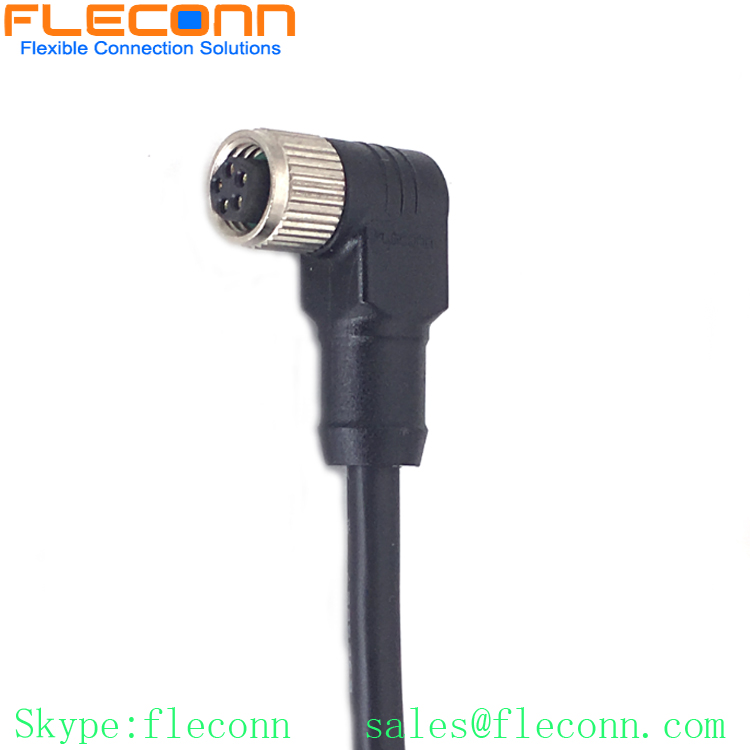

M8 5 Pole Female Cable, Right Angle, B-coding, TPU Moulded Connector Cable

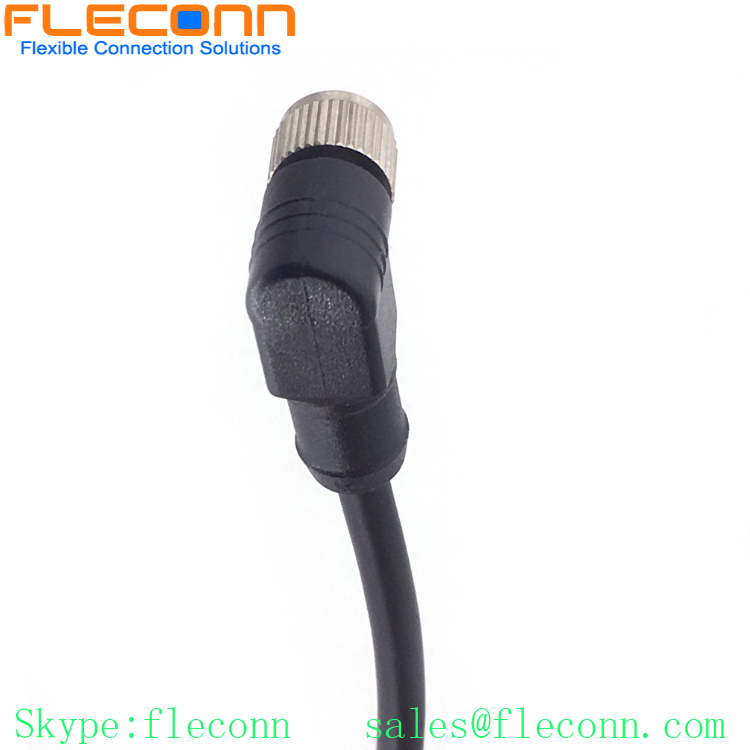

M8 B-coding 5 Position Sensor Cable, Right Angle Molded Female Connector Cable Assembly

M8 5 Position Female Cable, 90 Deg Right Angle, 0.5M 1M 2M 3M Available


Other M8 Molded Connector Cable

FLECONN can provide IP66 waterproof M8 molded cables for power and signal transmission connections.
