Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness
Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness

Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness

Item No.: MX-51021-6P-1.25PH-0.5M
Product Name: 1.25mm Pitch Wire Harness
Connector Pitch：1.25MM
Connector : Molex 510210600, 2/3/4/5/6/7/8/10/12/14 pin
Crimp Terminal: 500588000
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 1.25mm
Request Quote
Description
Description

Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex 1.25mm Pitch 501210600 Cable Assembly

Prouduct Name  Custom Molex 510210600 Connector Wire Harness
Equivalent to Molex Part No.  151340600，151340601，151340602，151340603，151340605，151340606，510210600
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 510210600 1.25mm Pitch Receptacle Housing, Dual Row, 5 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 500588000 1.25mm Pitch Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact,
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/ tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
























Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness

Molex 510210600 PicoBlade Receptacle Crimp Housing Wire Harness

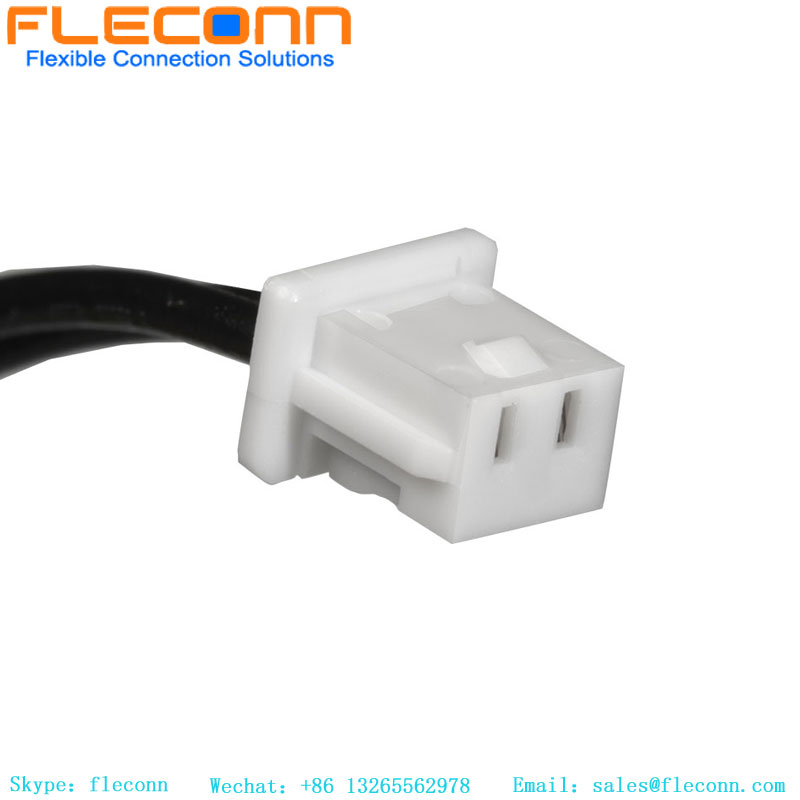

Molex 1.25mm Pitch 51021-0200 Wire Harness

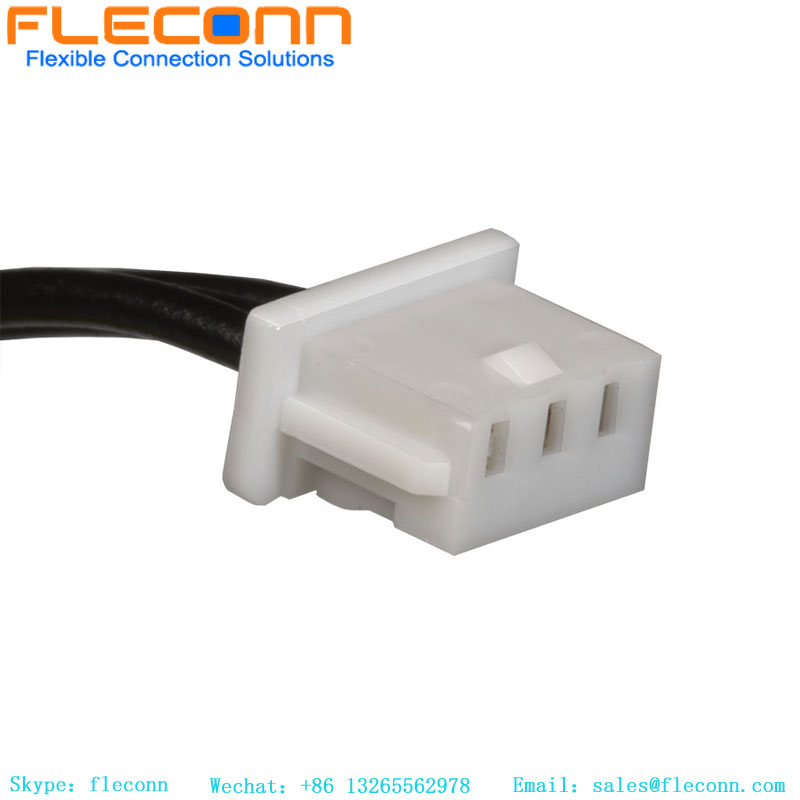

Molex 3 Pin 51021-0300 Cable Assembly

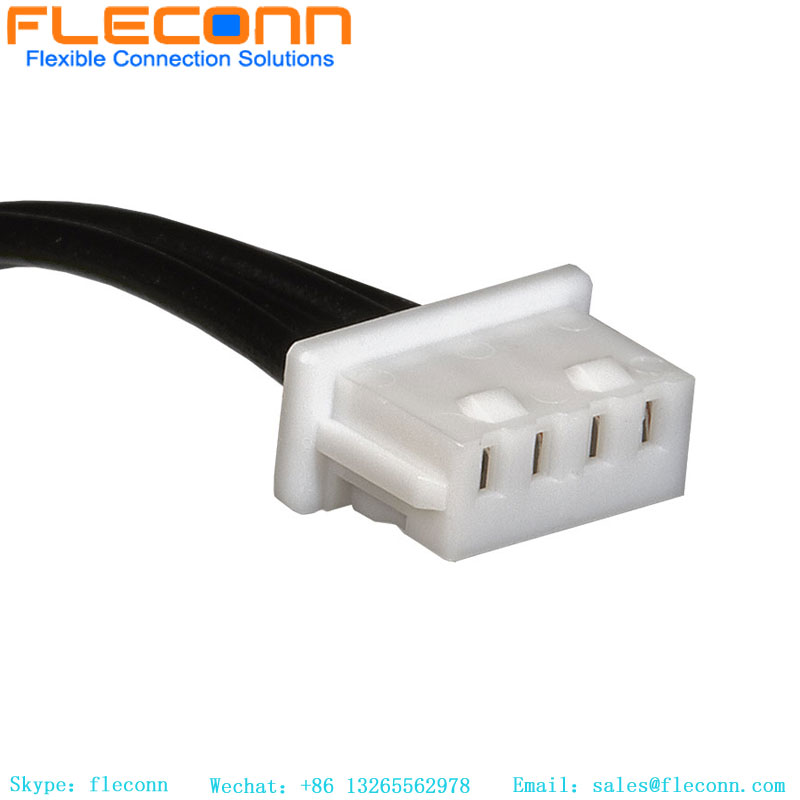

Molex 1.25mm Pitch 51021-0400 Cable Assembly

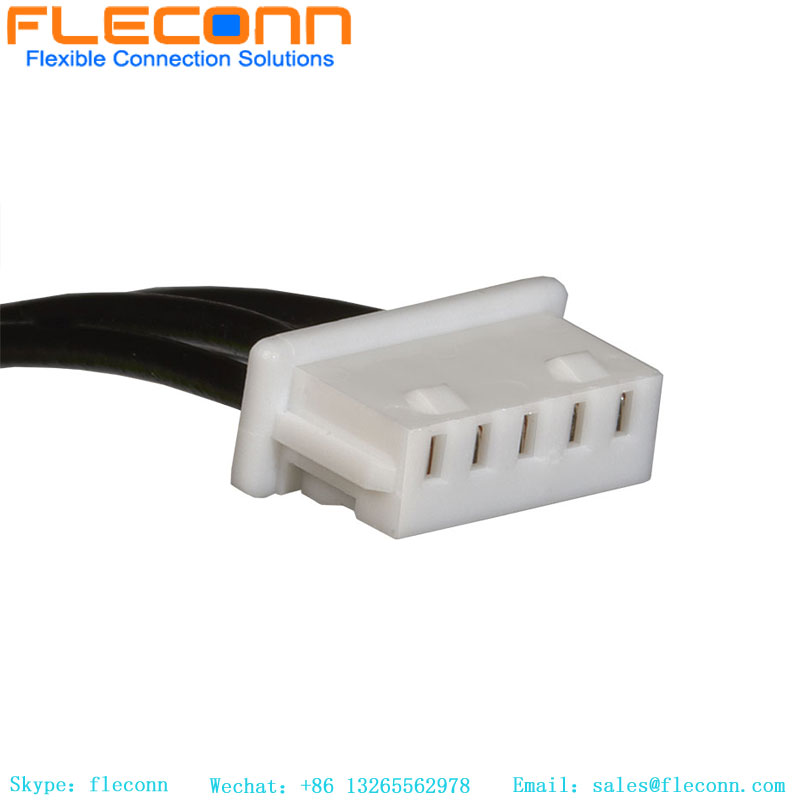

Molex 51021 Series 1*5Pin Wire Harness

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
