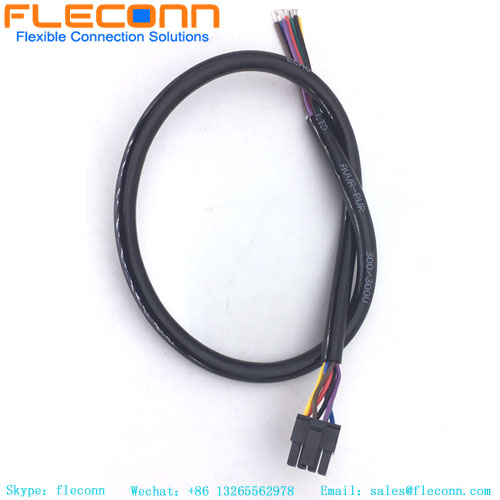

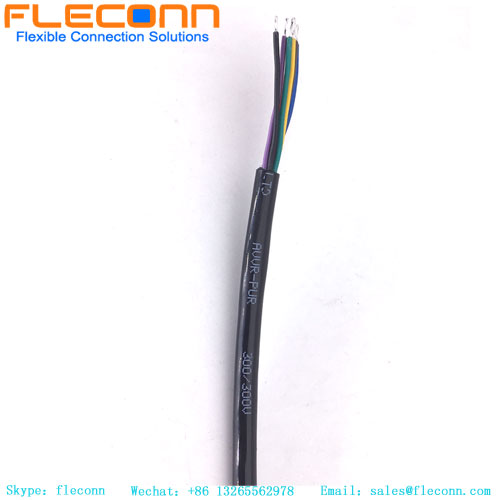

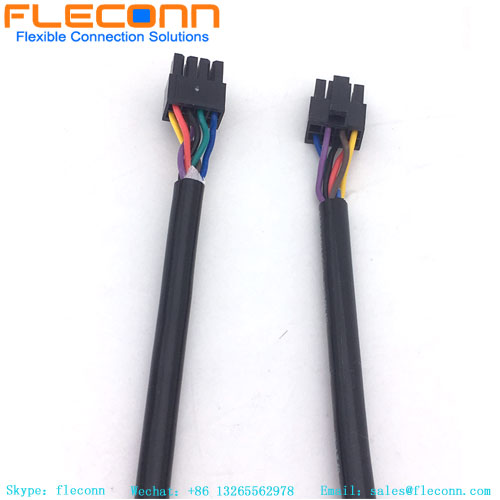

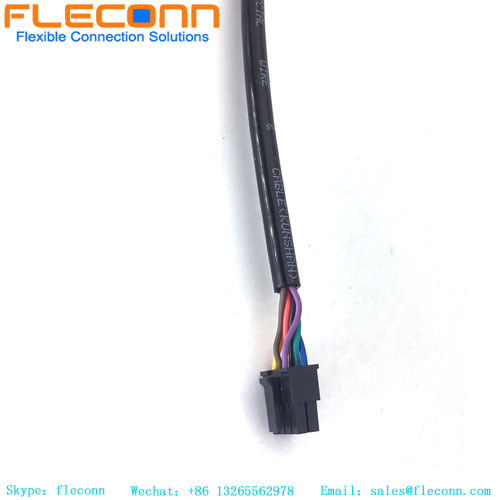

Molex Micro-fit 3.0 43025 8 Pin 3.0mm Pitch Connector Wiring Harness
Molex Micro-fit 3.0 43025 8 Pin 3.0mm Pitch Connector Wiring Harness Molex Micro-fit 3.0 43025 8 Pin 3.0mm Pitch Connector Wiring Harness Molex Micro-fit 3.0 43025 8 Pin 3.0mm Pitch Connector Wiring Harness Molex Micro-fit 3.0 43025 8 Pin 3.0mm Pitch Connector Wiring Harness Molex Micro-fit 3.0 43025 8 Pin 3.0mm Pitch Connector Wiring Harness

Molex Micro-fit 3.0 43025 8 Pin 3.0mm Pitch Connector Wiring Harness

Item No.: MX-F-3.0MM-8P-PCB-150MM
Product Name: Micro-Fit 3.0 Wire Harness
Connector Pitch：3.0MM
Connector : Molex 43025-0800, 2/4/6/8/10/11/12/14/16/18/20/22/24 pin
Crimp Terminal: 43031-0001
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 3.00mm
Request Quote
Description Review
Description

Micro Fit 3.0 Molex 43025 12Pin 3.0 Pitch Female Cable Wire Harness Description



FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 43025 series molex microfit 3.0 cable with micro-fit 3.0 connector for power transmision. There are 2 4 6 8 10 12 14 16 18 20 22 24 pin Molex Micro-Fit 3.0 Cable receptacle housing such as manufacturer part number 43025-0200, 43025-0400, 43025-0600, 43025-0800, 43025-1000, 43025-1200, 43025-1400, 43025-1600, 43025-1800, 43025-2000, 43025-2200, 43025-2400 available.

Detail description for Micro Fit 3.0 Molex 43025 12Pin 3.0 Pitch Female Cable Wire Harness

Prouduct Name    Molex Micro-Fit 3.0 Series 43025-0800 8 Pin Connector Cable Wire Haeness
Equivalent to Molex Part No.  2147561081,2147561082,2147561083
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 43025-0800 Micro-Fit 3.0 Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43031-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable
10. Wiring diagrm: defined by customers
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag


























Micro Fit 3.0 Molex 43025 12Pin 3.0 Pitch Female Cable Wire Harness

Micro-fit 3.0 43025 Overmolded Cable Assembly

Molex Micro Fit 3.0 Cable 8 Position Wire Harness

MicroFit 3.0 Cable 43025-0800 Series Wire Harness

Molex 3.0 Pitch Female 8Pin Cable Assembly

Micro-Fit 3.0 Female wiring Cable Assembly

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
