Home > TE/AMP Connector Cable Assemblies > AMP Superseal 1.5mm Series

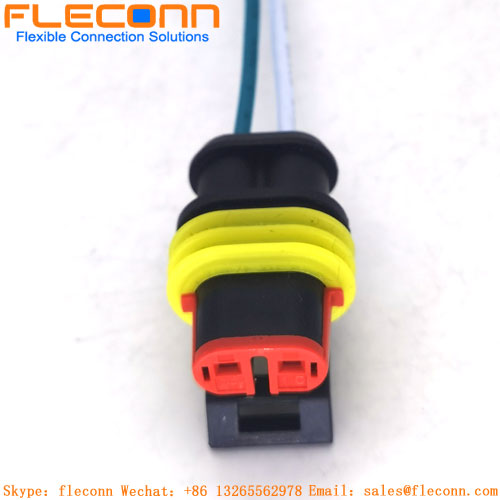

TE 282080-1 AMP Connector waterproof Wire Harness 2P Female
TE 282080-1 AMP Connector waterproof Wire Harness 2P Female TE 282080-1 AMP Connector waterproof Wire Harness 2P Female TE 282080-1 AMP Connector waterproof Wire Harness 2P Female TE 282080-1 AMP Connector waterproof Wire Harness 2P Female TE 282080-1 AMP Connector waterproof Wire Harness 2P Female

TE 282080-1 AMP Connector waterproof Wire Harness 2P Female

Item No.: TE-1.5MM-2P-IP67-150MM
Product Name: TE AMP 1.5mm wire harness
Connector Pitch：1.5MM
Connector : AMP 282080-1, 2/4/6/8/10/11/12/14/16/18/20/22/24 pin
Crimp Terminal: 282403-1
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 1.5mm
Request Quote
Description Review
Description

TE 282080-1 AMP Connector waterproof Wire Harness 2P Female Description



FLECONN can customize various TE/AMP connector harnesses for customers, aiming to reliably transmit data, power and signals in the worst environment and under the most extreme use conditions. Different types of connector harnesses can be produced according to customer needs, which can reduce the size and power consumption of applications and improve performance.

Detail description for TE 282080-1 AMP Connector waterproof Wire Harness 2P Female

Prouduct Name TE AMP 1.5mm pitch/Disconnectable Crimp style connectors
Equivalent to Molex Part No. 282080-1,2-42939-6211,8202611296,8202613264,AMP-0-0282080-1,CM8390-000
 Applications   Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing:282104-3,AMP 1.5mm Crimp Housing, Friction Ramp with Polarizing Ribs, 2 Circuits, Natural
2. Crimp terminal: 282080-1，AMP 1.5mm Crimp Terminal, 22-30 AWG, Hot Tin (Sn) Dip Plating
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable
10. Wiring diagrm: defined by customers
Environment temperature:  Ambient temperature for operation: -25…125℃
Waterproof Rating: IP67
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag























TE 282080-1 AMP Connector waterproof Wire Harness 2P Female

2 Pin Amp te 282080-1 waterproof IP67 female auto Connector

18awg Car Wire Harness Female Waterproof Electrical Connector Plug Socket Kit With Wire 1.5mm Series Termin

AMP Superseal 1.5mm Housing for Female Terminals 236 in [6 mm] Centerline

AMP Superseal 1.5mm Series Wire-to-Board 2 Position 281934-4

TE 282106-2 AMP Connector waterproof Wire Harness 2P Female

TE/AMP Connector Cable Assemblies

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
